ZYP Series Bag Breaking Machine
  • Factory Direct Sale
  • Quality Assurance
  • Quick Response
  • Service Without Worry

ZYP Series Bag Breaking Machine

Choose your preferred machinery when purchasing equipment, and provide free shuttle transportation to visit and inspect the factory.

Processing Capacity:3-60m³/h

Feed Particle Size:≤1000mm

Applicable Materials:Decoration garbage, obsolete garbage, bulky garbage

Application Scope:Specially designed to handle recyclable waste

+8613503852957
7 * 24-hour Service Hotline

The garbage bag breaking machine has a specially designed knife box and is mainly used for breaking and shaping garbage bags for decoration. Its feature is that it can automatically cut garbage bags for bag breaking and shaping without manual intervention. The inner drum of the bag breaking machine is equipped with a blade, which will cut the garbage bag. After the garbage bag is broken, it will be transported to the subsequent sorting equipment. The bag breaking machine mainly consists of a frame, baffle, rotating sleeve, cutter, motor, driving wheel, transmission wheel, electronic control system, etc.

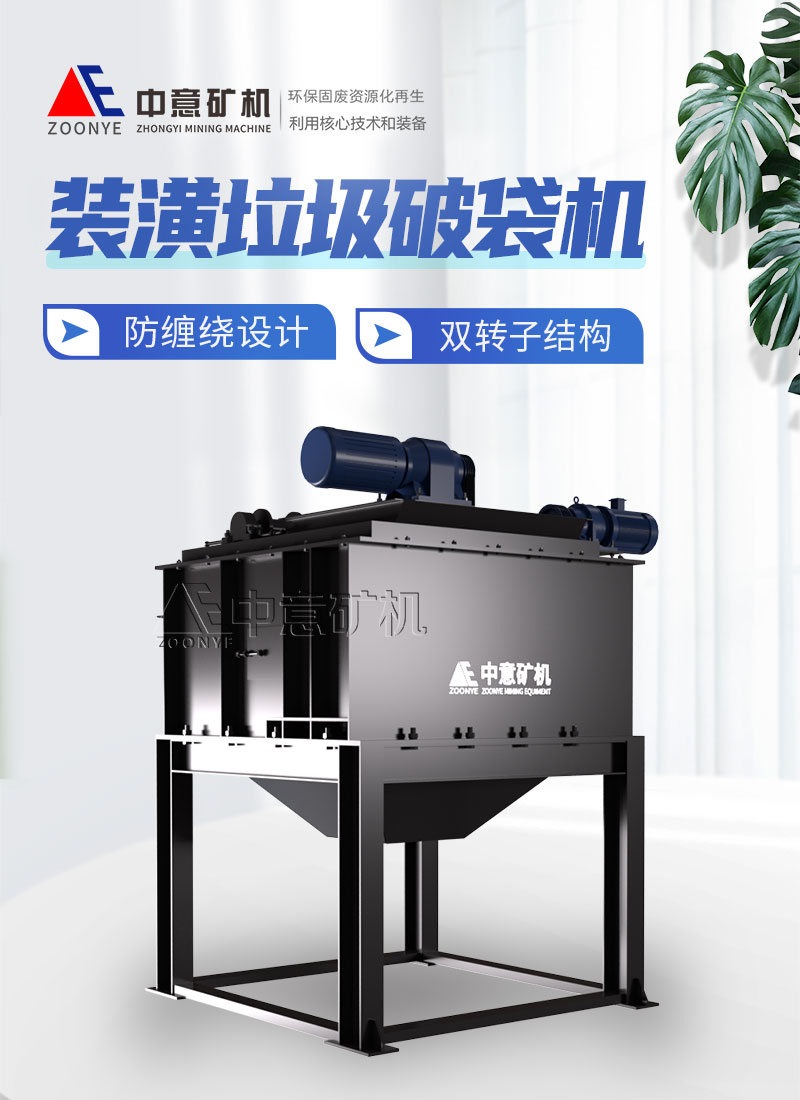

Bag Breaking Machine.jpg

Advantages And Characteristics

1. The packet breakage rate is over 95%.

2. It can also cut open bags within bags (small bags within large bags), with a high bag breakage rate.

3. Suitable for various types of garbage.

4. Prevent excessive feeding, and the operation is flexible and convenient.

5. Large-capacity hopper, uniform discharge volume.

6. Anti-clogging system prevents the bag breaking machine from being blocked by steel strings, steel wires or films.

7. The blade can be adjusted according to the specific garbage composition.

8. The processing capacity can reach more than 45 tons per unit (depending on the specific garbage composition).

Working Principle

The inlet and outlet baffles are fixed on the bracket, and the distance and inclination between the baffles and the drum can be adjusted as needed. After the garbage is transported to the feed end of the bag breaking machine, the plastic bags are broken through baffles and knives. The rotation speed of the bag breaking machine is adjusted through the electronic control system. The fixed shaft and rotating sleeve adopt a composite eccentric design, and the length of the tool extending out of the sleeve can be adjusted. During the high-speed rotation of the sleeve, the feed-end cutter extends out of the drum for a long distance, which is conducive to throwing the material in the tangential direction of the rotation. The material is guided by the discharge baffle and passes between the discharge baffle and the rotating sleeve. time export. To achieve better bag breaking effect, the bag breaking rate is 95%.

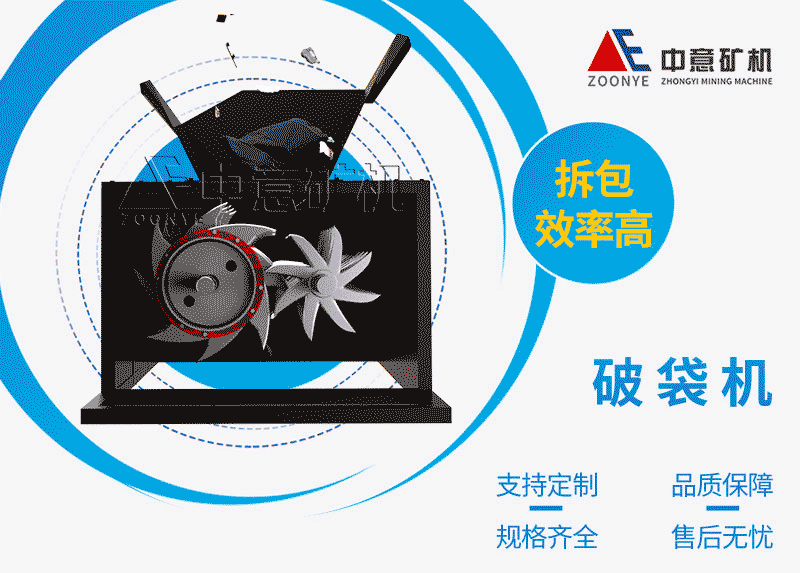

Working Principle Of Bag Breaking Machine.gif
Working Principle Of Bag Breaking Machine

Technical Parameter

ModelPower(kw)Processing Capacity(m³/h)
ZYP1203030-120
ZYP1503740-150
ZYP2005550-200
